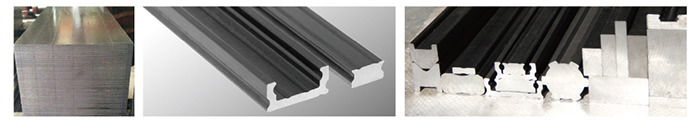

Shaped Metal Bars

What's Shaped Metal Bar?
Different from ordinary metal ( kinds of metal ) round bar, so-called shaped bars (such as rectangle, triangle, oval, sqare, hexagon, or other sapes.) in needed for special requirement.

The merits of using Shaped Bars
Usually, it spends long time to cut metal into special shapes. But when you use this object in the mass production of components. That will cut material consumption and reduce operation time. It brings more benefits.

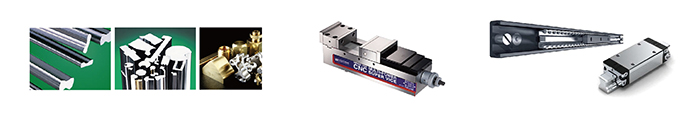

Parts for one-way-clutch	Parallel bench vices square jaw type	Linear Guidway

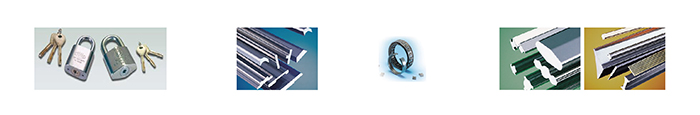

Lock & Other hardware	Parts for Sewing machine.	light-loaded bearing	Parts of medical / electric / computer

Customized Products, Please Provide Us
• Sample or drawing (Size / Tolerance)
• Material. hardness. Tensilestrength
• The succeeding processes (e.g. bending, stamping deformation, punching, cutting, machining, etc.)
• The succeeding processes on surface (e.g. plating, baking - finished, blackened…etc.)
• Usage and condition
• Quantity
• Packing

Remark
Steels for commonly used material SGD400,1008M, S45C, S50C, SXXC, SCM, SUJ2, other special types of steels can be assessed and developed.

Cold Draw Flat

Click on the image to enlarge the table of contents　

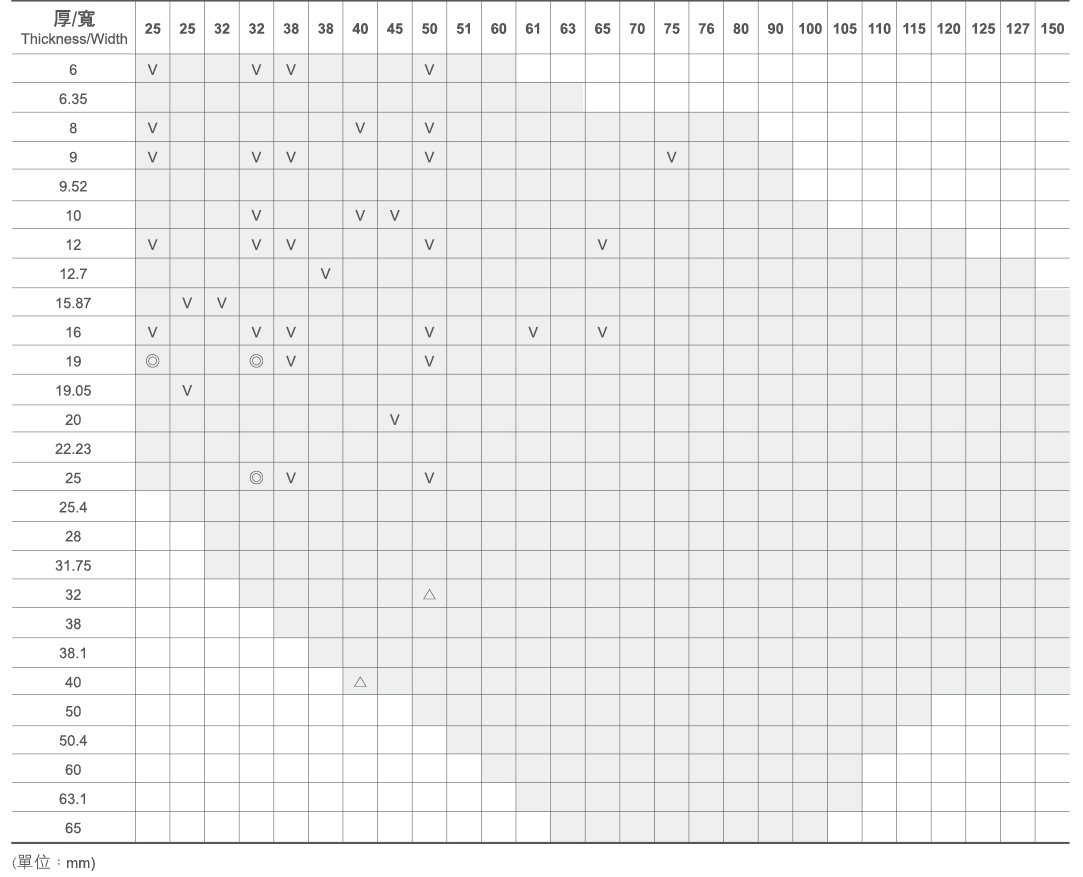

Smooth flat steel specifications

Remark
• The gray area represents the range of production, for special sizes, please contact us for customized production.
• For commonly used material SGD400,1008M, S45C, S50C, SXXC, SCM, SUJ2, other special types of steels can be assessed and developed.
• Specifications in the table marked with a “V” are currently existing, marked with “◎” are limited to A-level orders only, marked with “△”are limited to A-level future orders only.
• Thickness of more than 25mm and thickness to width ratio of 1 : 1.6 or less is limited to A-level and above quality grades only.
